Raspberry Pi Pico H - Pico with Headers Soldered
Raspberry Pi Pico H - Pico with Headers Soldered
Key Points
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26x multi-function GPIO pins
- 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x controllable PWM channels
- Accurate clock and timer on-chip
- Has Inbuild Temperature sensor
- Accelerated floating-point libraries on-chip
- 8x Programmable I/O (PIO) state machines for custom peripheral support
Description
Official Raspberry Pi Pico H - Pico with Headers Soldered
Raspberry Pi Pico H with Soldered Headers is a low-cost microcontroller board that features their powerful new chip, the RP2040, and all the fixin to get started with IoT-embedded electronics projects.
Raspberry Pi Pico H is Similar to the classic Raspberry Pi Pico but adds pre-soldered headers and a new 3-pin debug connector.

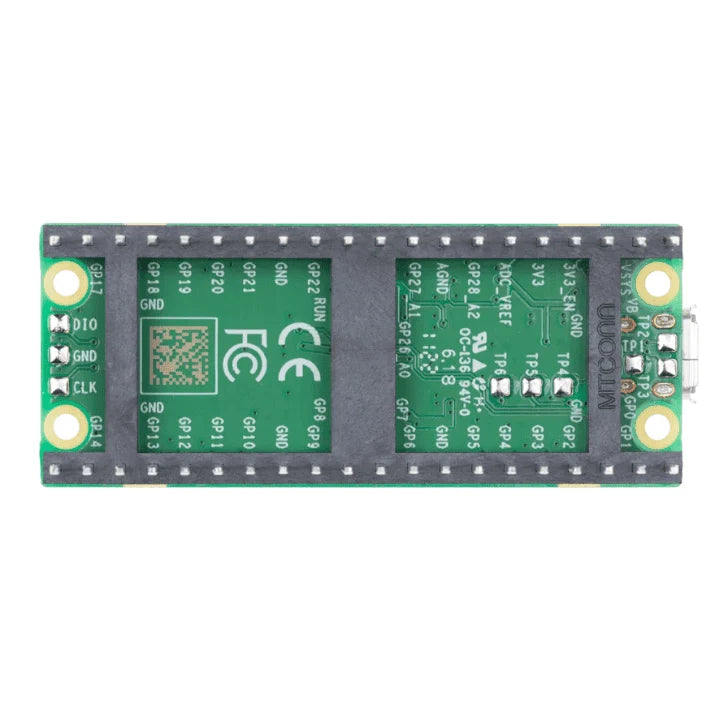

There are 20 pads on each side, with groups of GPIO pins interleaved with plenty of ground pins. All of the GPIO pins are 3.3V logic and are not 5V-safe so stick to 3V! You get a total of 25 GPIO pins, 3 of which can be analog inputs (the chip has 4 ADC but one is not broken out). There are no true analog output (DAC) pins.

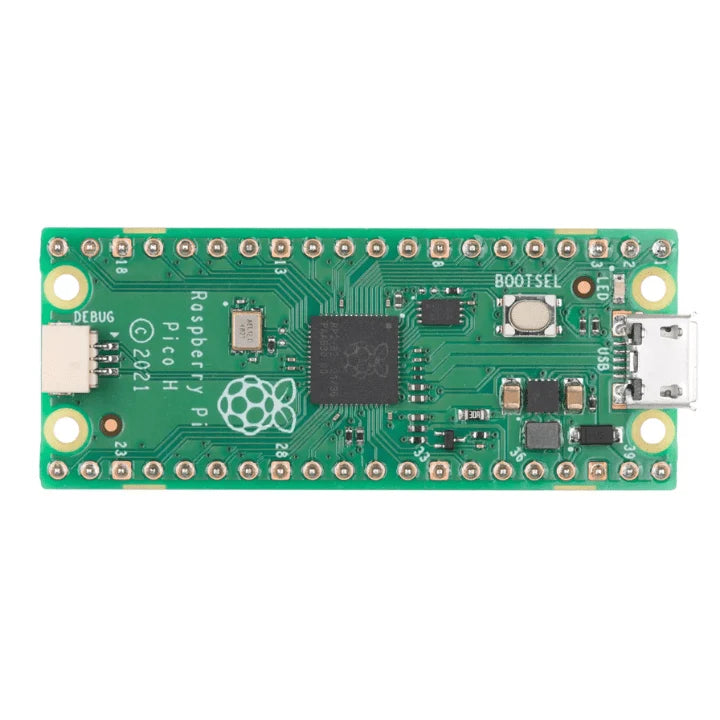

On the slim green board is minimal circuitry to get you going: A 5V to 3.3V power supply converter, single green LED on GP25, boot select button, RP2040 chip with dual-core Cortex M0, Wireless chipset with antenna, 2 MegaBytes of QSPI flash storage, and crystal.

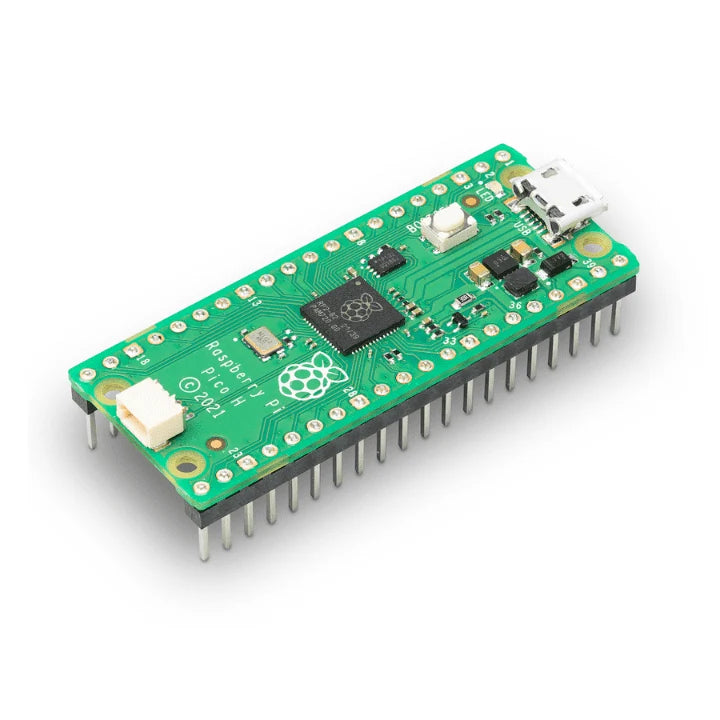

Note: This variation comes with a set of male headers pre-soldered to all through-hole vias and a 3-pin debug connector. The spacing remains 2.54mm and breadboard compatible (even more so now with the addition of the male headers).
Pin Diagram:
Features:
- Dual-core ARM Cortex M0+ processor, up to 133 MHz.
- 26 GPIO pins, including 3 analog inputs.
- Pre-soldered headers for easy use.
- 1.8V to 5.5V input voltage.
- Compact 21 x 51 mm design.
- Low-power sleep and dormant modes.
- USB drag-and-drop programming.
- Castellated module for surface mounting.
Specifications
Package Includes:
- 1 x Raspberry Pi Pico H with Headers Soldered
Specifications:
| Specification | Details |
|---|---|
| Model | Raspberry Pi PICO H |
| Operating Voltage (VDC) | 1.8 ~ 5.5 |
| Processor | RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi |
| RAM | 264 KB |
| GPIO | 26 Pins |
| Clock Speed | 133 MHz |
| On Board Ports | Micro-USB 5V/2.5A DC Power Input Port |
| Operating Temperature (°C) | -20 to 85 |
| Dimensions (mm) | 51 x 21 x 9 |
| Weight (gm) | 12 |
