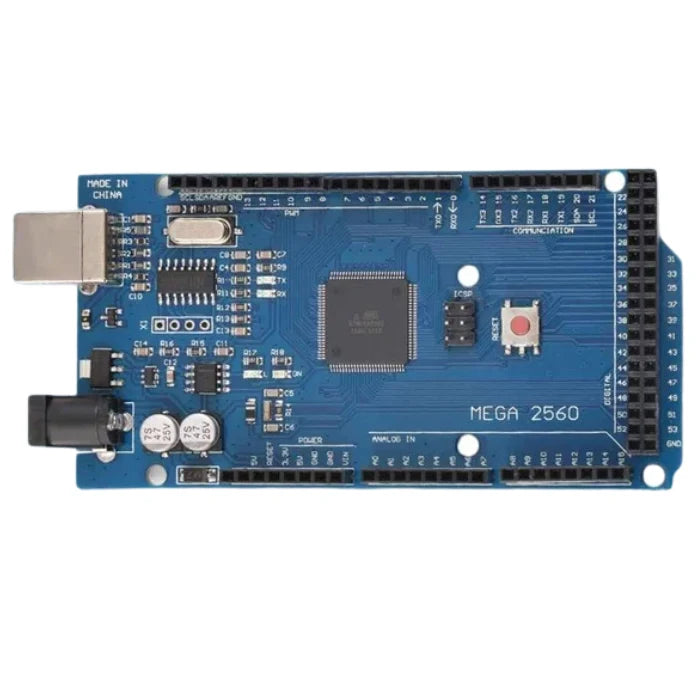

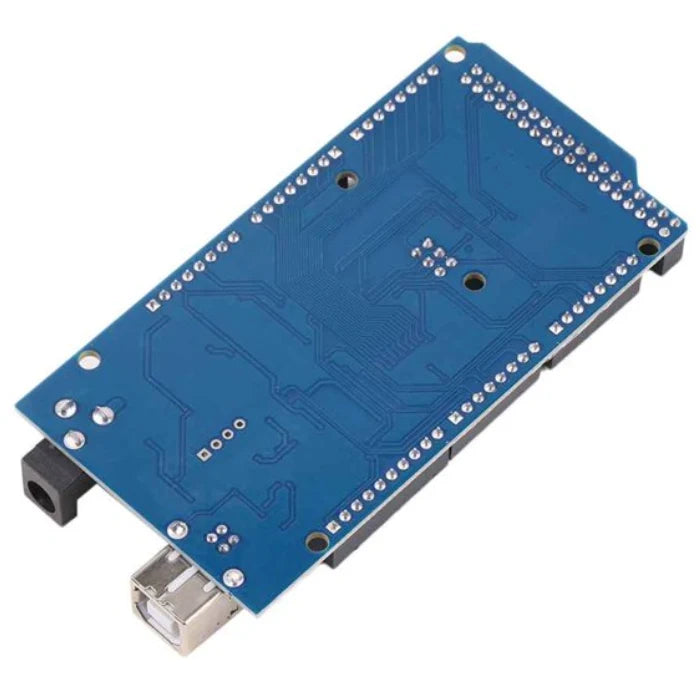

Arduino MEGA 2560 CH340 R3 Compatible Board
Arduino MEGA 2560 CH340 R3 Compatible Board
Key Points
- This is MEGA 2560 R3 Board compatible with Arduino
- Developed around a AT Mega2560 microcontroller and are compatible with Arduino.
- This board has an operating voltage of 5V.
- Features advanced technology for seamless performance.
- Ideal for robotics, automation, and IoT projects.
- Made with high-quality materials, providing reliability and durability.
- Easily programmable and designed for a wide range of applications.
- Supports a multitude of user applications.
Description
Arduino MEGA 2560 CH340 R3 Compatible Board
The Arduino MEGA 2560 R3 feature-packed development board is a dream come true for electronics enthusiasts and creators.
It comes with top-notch quality and assurance. This Arduino mega microcontroller Board is a true powerhouse, equipped with 54 digital I/O pins and 16 analog input pins.
It caters to all age groups and skill levels, encouraging skill development as you experiment and innovate. It's an ideal choice for a spectrum of applications, from robotics to automation and IoT projects.
The AT Mega2560 Arduino R3 board is an Android Accessory Development Kit (ADK) that can be powered via a USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or a battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board’s power jack.
The Arduino Mega R3 Android Accessory Development Kit (ADK) is a USB Host, the phone will attempt to draw power from it when it needs to charge. When the ADK is powered over USB, 500mA total is available for the phone and board.
It's engineered to solve a wide range of user applications. This makes it a must-have for makers, students, and professionals alike. If you're someone who values quality and versatility in your electronics projects, the Arduino MEGA 2560 R3 Board is an indispensable tool.
CH340 Driver Setup
This Arduino Mega 2560 R3 compatible board uses the CH340 USB-to-serial chip for communication with your computer. On Windows, if the board is not detected by the Arduino IDE after connecting it through USB, you may need to install the appropriate CH340 driver and reconnect the board. Once the driver is installed correctly, select the detected COM port in the Arduino IDE to upload your sketches.
New Features of the Arduino Mega2560 R3 Board
- Features a 1.0 pinout with added SDA and SCL pins near the AREF pin.
- Features two new pins located near the RESET pin.
- It allow mega2560 shields to adapt to the voltage provided by the board.
- The At Mega2560 development board also features a stronger RESET circuit.
- Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector.
Applications:
- Building robotic projects.
- Creating automation systems for home or industrial use.
- Perfect for Internet of Things (IoT) applications.
- Capable of gathering data from sensors and input devices.
- Excellent for prototyping electronic projects.
- A valuable tool for teaching electronics, programming, and engineering concepts.
- Controlling lights, appliances, and secu
Specifications
Package Includes:
- 1 x Arduino MEGA 2560 CH340 R3 Compatible Board
Specifications:
| Microcontroller | ATmega2560 |
|---|---|
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Digital I/O Pins | 54 (of which 15 provide PWM output) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 256 KB of which 8 KB used by bootloader |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 16 MHz |
| LED_BUILTIN | 13 |
| Dimensions | 101.52 x 53.3 x 2 mm |
| Weight | 37 g |
